Powering the Future: The Ultimate Guide to Container Solar Roof Brackets

In the era of renewable energy and mobile living, shipping containers are being repurposed for everything from off-grid cabins and pop-up shops to industrial solar generators. But how do you mount heavy solar panels onto a curved, corrugated metal roof without damaging it? The answer lies in a specialized piece of engineering: the Container Solar Roof Bracket.

Whether you are building a solar-powered workshop or a remote telecommunications station, these brackets are the silent heroes bridging the gap between industrial waste and clean energy.

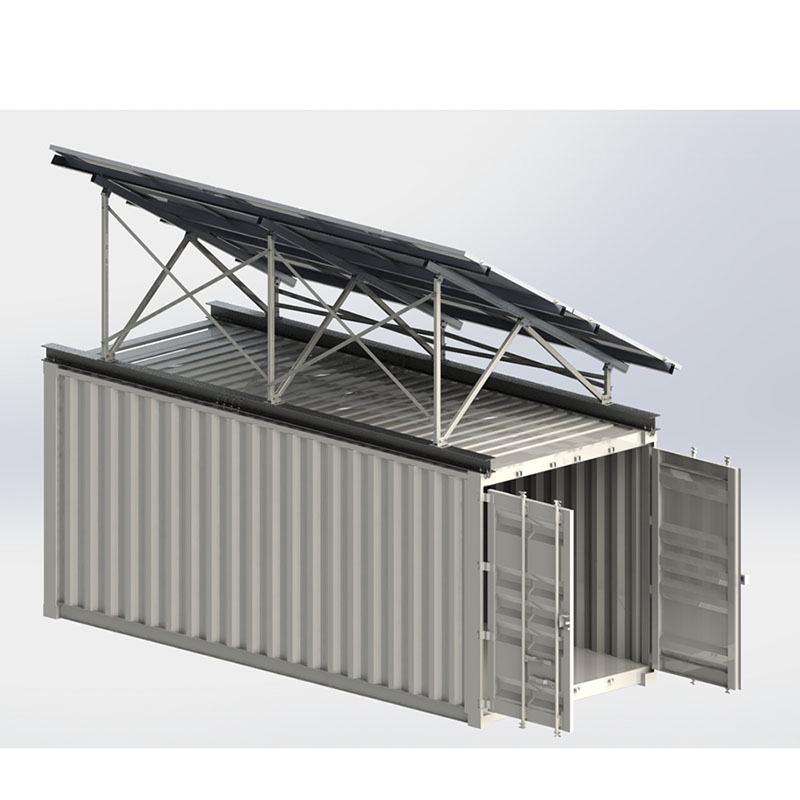

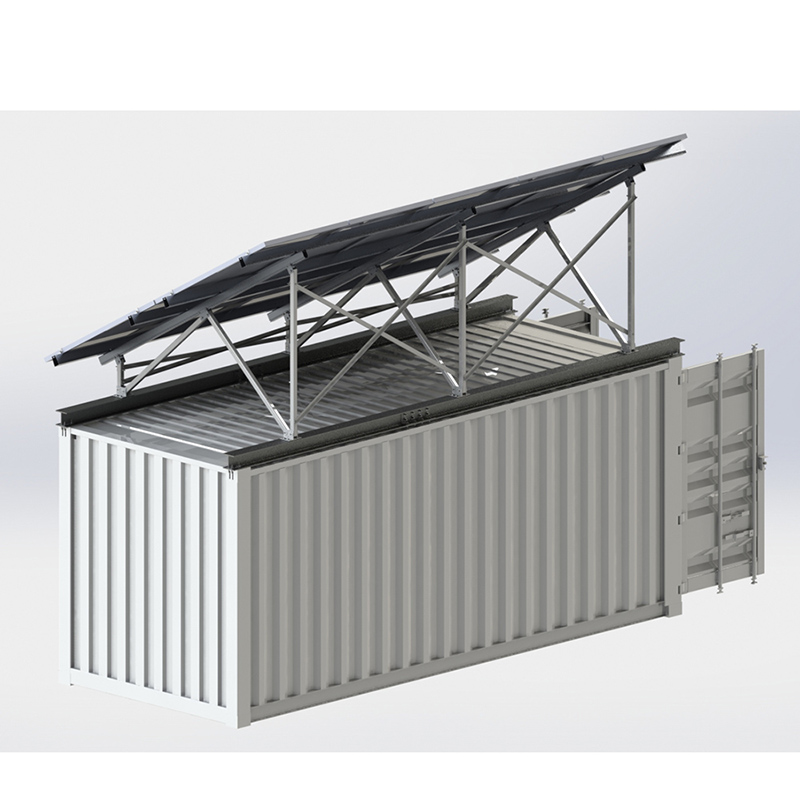

What is a Container Solar Roof Bracket?

Unlike standard residential solar mounts that rely on shingles or flat concrete, container brackets are designed specifically for the unique "corrugated" surface of shipping containers. They typically consist of:

• A clamp base that grips the raised ridges (peaks) of the container roof.

• An adjustable standing seam or L-foot that lifts the panels.

• A rail interface to attach standard solar aluminum rails.

Primary Uses (Purpose)

These brackets are essential for converting a standard steel box into an energy-producing asset:

1. Off-Grid Living & Mobile Homes: Turning a container home into a self-sufficient dwelling.

2. Remote Power Stations: Providing power for construction sites, mining operations, or rural medical clinics.

3. Cold Storage & Reefer Containers: Running refrigeration units without drawing from the grid.

4. EV Charging Stations: Creating mobile solar canopies that power electric vehicle chargers.

5. Emergency Relief Shelters: Deploying rapid-response housing with immediate power.

Key Advantages (Why use them?)

1. Zero Roof Penetration (No Leaks)
This is the biggest selling point. Drilling holes into a container roof is risky—one bad seal leads to internal rust and ruined belongings. Container brackets use clamping force rather than screws. They grip the roof peaks, keeping the waterproof integrity of the container 100% intact.

2. Optimized Airflow (Cooling)
Container roofs get extremely hot (often over 150°F/65°C). These brackets lift the solar panels 2 to 4 inches above the steel surface. This gap creates a "wind tunnel" effect. Air flows under the panels, cooling both the solar cells (increasing efficiency) and the container roof (keeping the interior cooler).

3. Utilization of Dead Space
A container roof is usually useless, flat space. By adding brackets, you turn wasted square footage into a power plant. A standard 20ft container roof can easily host 4kW to 6kW of solar panels.

4. High Wind Resistance
Because these brackets clamp tightly to the structural steel ridges, they form a mechanical lock. High-quality stainless steel container brackets are rated to withstand hurricane-force winds (110+ mph), provided the container is anchored to the ground.

5. No Corrosion Issues
Good brackets are made of Stainless Steel (304/316) or Aluminum 6063. The rubber protective pads inside the clamp prevent galvanic corrosion (the chemical reaction between the steel container and the aluminum/steel bracket).

6. Tool-Free Adjustability (Easy Install)
Most designs use a simple hex bolt to tighten or loosen the clamp. This allows you to slide the bracket along the ridge to adjust for panel length or avoid obstacles, without needing a full engineering crew.

How to Install (Brief Overview)

1. Plan the array: Measure your container roof length (usually 20ft or 40ft).

2. Set the brackets: Slide the clamps onto the raised ribs of the container.

3. Tighten: Torque the bolts so the bracket bites firmly into the steel.

4. Attach rails: Screw your standard solar rails into the bracket tops.

5. Mount panels: Click the solar panels onto the rails.

Conclusion

You don’t need a flat concrete field to go solar anymore. The Container Solar Roof Bracket is a cost-effective, leak-proof, and robust solution for modern energy needs. If you have a shipping container and you want to generate power, skip the drill and grab a set of clamps.

Call to Action
Looking to retrofit your container? Look for brackets with rubber liners and grade 304 stainless steel to ensure a 25-year lifespan matching your solar panels.
